Rear Axle Pneumatic Holding Fixture

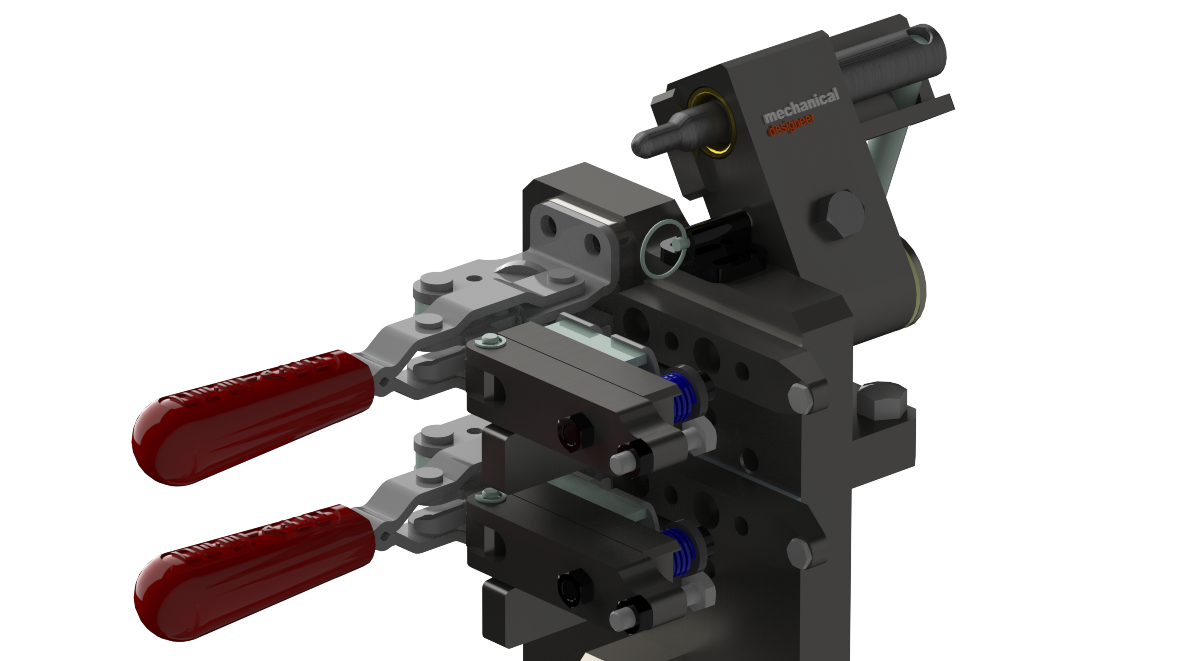

4 points pneumatic clamping fixture made for a real axle part to be used in optical measurement system.
Cross Car Beam Manual CMM Holding Fixture
This is a manually operated clamping fixture made for a CCB(Cross car beam) part to be used in CMM(Coordinate Measuring Machine) Lab.
Cross Car Beam Clip-nut Assembly and Holding Fixture
This design is made for an CCB part where operator can load the part and assemble the clip nuts on it. Mid-section of the fixture is 240 degrees rotatable both manually and pneumatically to give more space for the operator for easy and ergonomic assembly. After the assembly, presence of the clip-nuts are checked optically inside optical measurement system.
Subframe Pneumatic Holding Fixture with Twist Function
4 points pneumatic clamping fixture made for a subframe part to be used in optical measurement system. With this fixture it is also possible to measure part’s twist, which is sometimes required by car manufacturers.
2D manufacturing and assembly drawings
Here you can find some sample 2D manufacturing and assembly drawings.
Stress Analysis

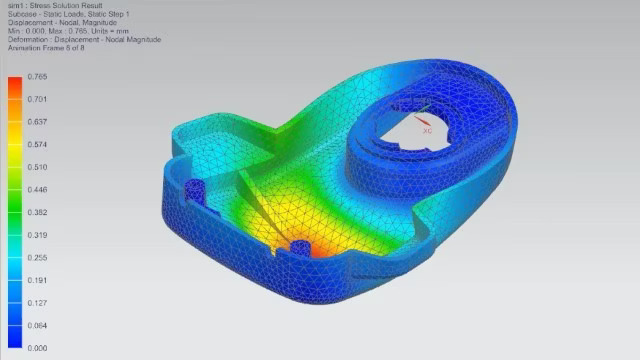

Here is a simple stress analysis made for a clamp mounting bracket.
Latest posts
-
Wiring a connector to a cable
Wiring a connector to a cable according to an electrical plan requires careful attention to detail to ensure a safe and reliable connection. Here are some important things to note:
-
Case study: Design improvement based on stress analysis results in NX
Using stress analysis results of a steel plate and reducing the maximum stress with design improvements.
-
M12 Connectors and their coding types
What is an M12 connector? The M12 connector is a type of circular connector that is widely used in industrial applications, particularly in automation, sensor connections, and industrial Ethernet networks.
