This fixture is used to hold a rear axle part in optical measurement system. It is fully automated by a PLC. There are 4 clamping points and 2 retractable locating pins. When the part is loaded to the fixture by the robot, clamps close one by one according to customer specific clamping sequence. After all clamps are closed, pins are retracted from the part, to be able to get optical visibility of the locating holes.

• Spring loaded clamp arm to limit clamping force in desired level

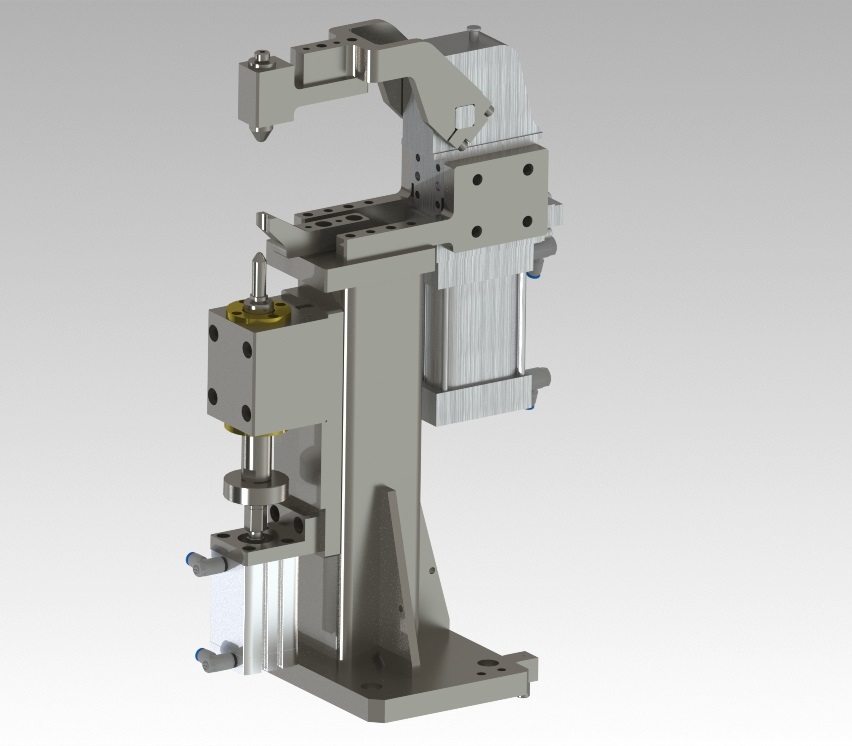

• Retractable locating pin
• Adjustable tower mounting

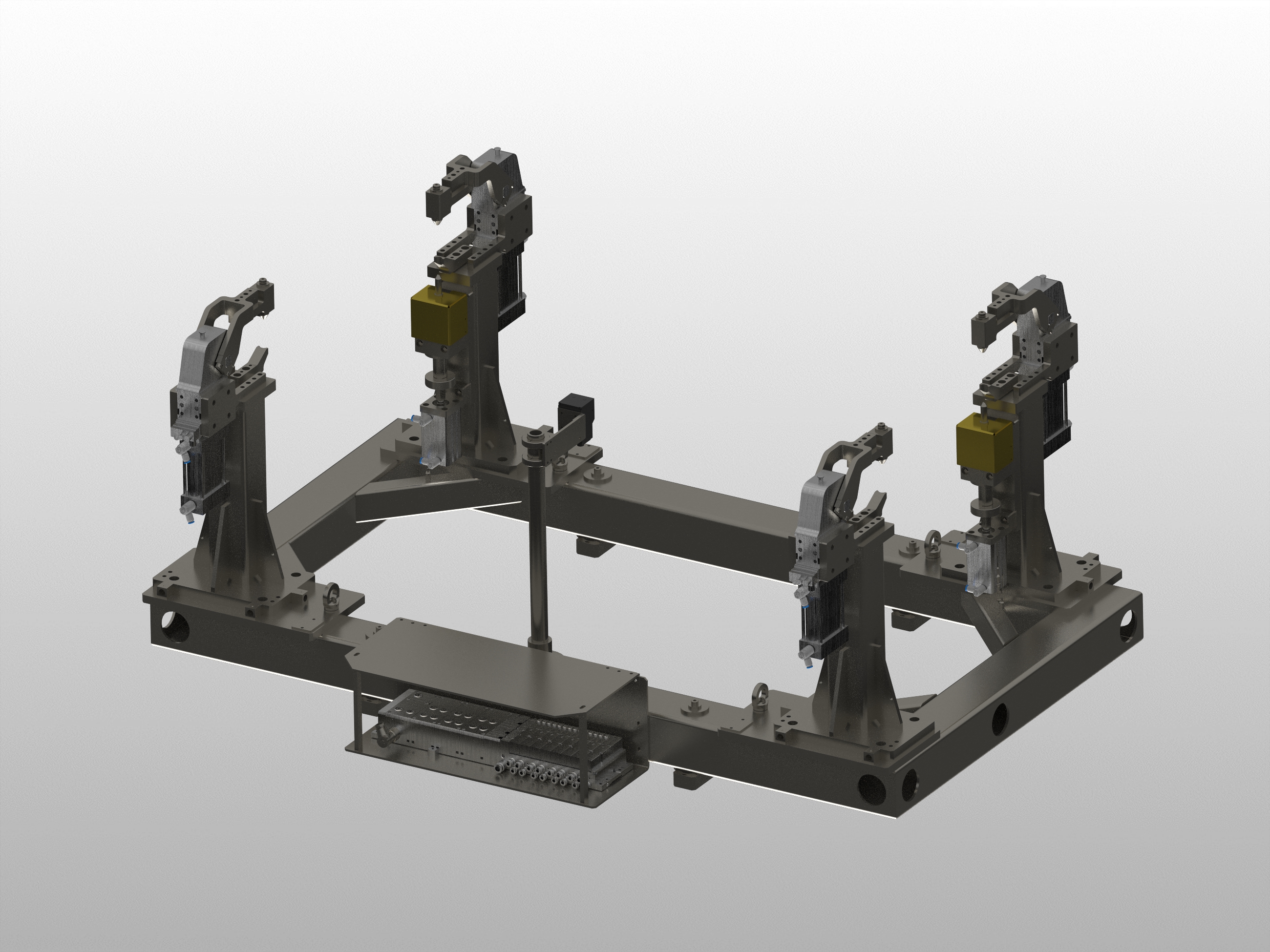

4 points pneumatic clamping fixture overview

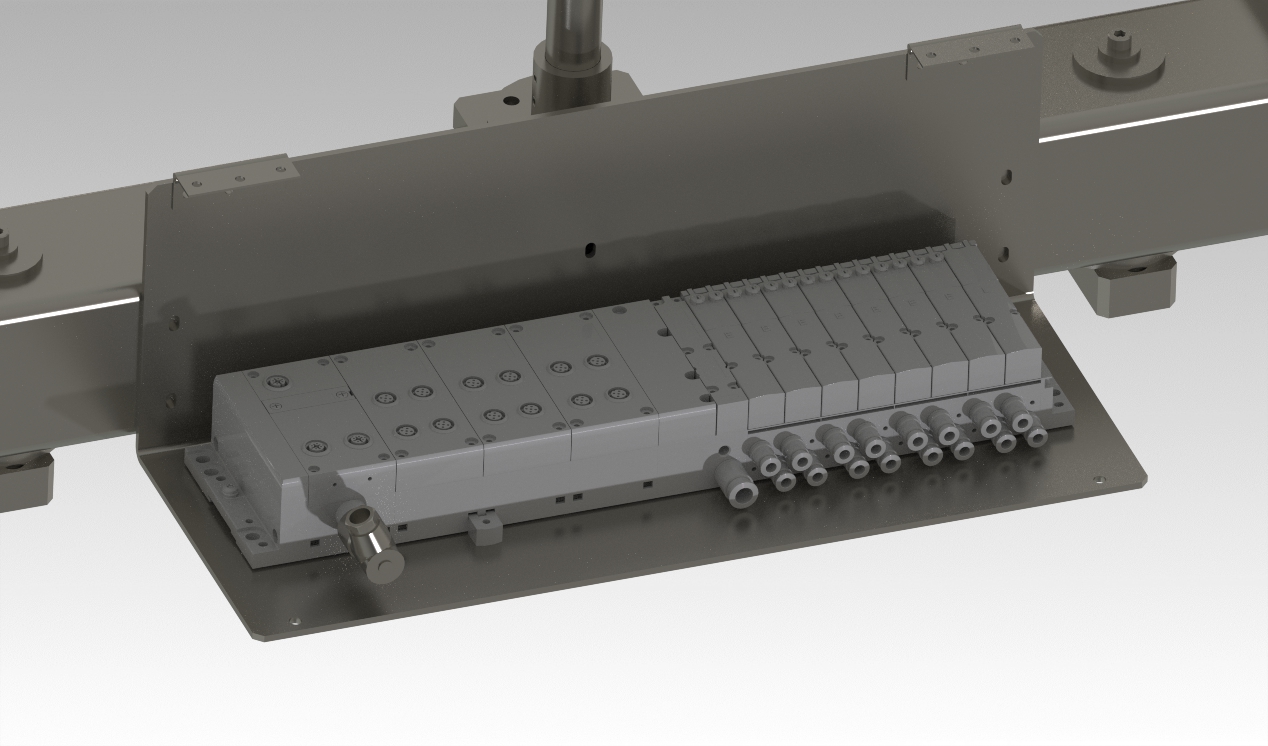

Festo valve terminal for I/O signal communication with PLC

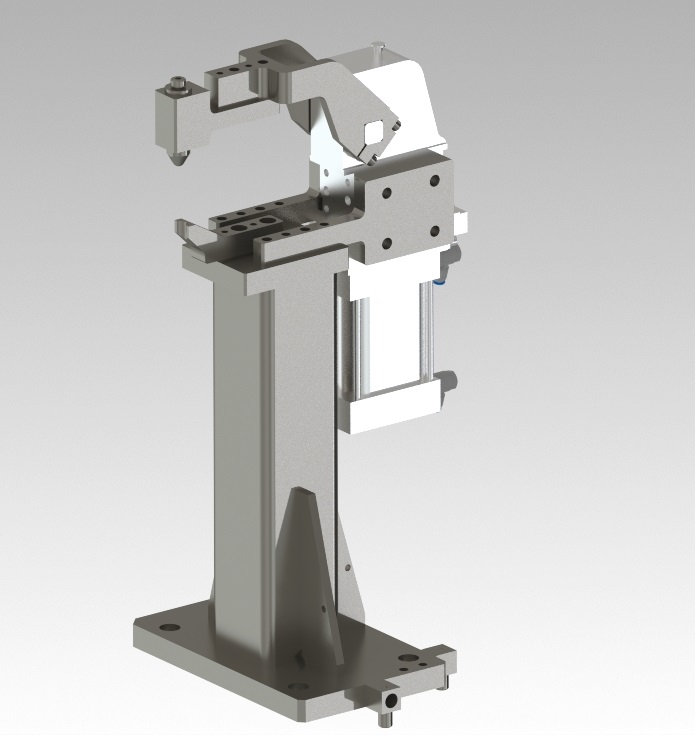

Spring loaded clamping corner
